The SEB lifting ring is a single swivel ring. Equipped with 2 pins that always guide it perfectly in the direction of the sling. It is specially designed for lifting, including rotating loads.

Features:

  • Gradup steel ring that has a rotating range of 360°.
  • Swivelling under load
  • Safe alternative to C15 DIN 580 eye bolts.
  • Torque key adaptor available on request.

Grade: GRADEUP (8+)

  • Material: High tensile steel
  • Marking: According to standard, CE-marked
  • Standard: EN 1677-1
    except grade/WLL
  • Note: On request the product can be certified for lashing.
  • Safety factor: 5:1

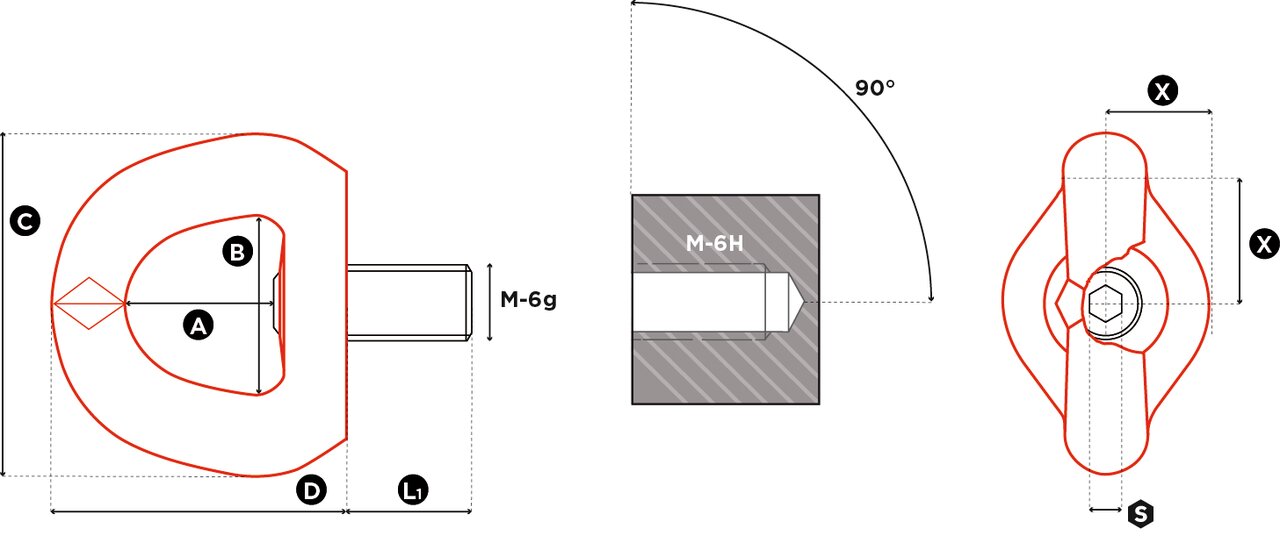

Product Picture 1
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Thread Torque
Nm
StandardL1
mm
X/X
mm
S
mm
A
mm
B
mm
C
mm
D
mm
Weight
kg
NS8R08SEB 0.4 M 8 (x1.25) 6 14 20 6 30 34 60 57 0.24
NS8R10SEB 0.5 M 10 (x1.50) 10 17 20 6 30 34 60 57 0.24
NS8R12SEB 0.8 M 12 (x1.75) 15 21 20 6 30 34 60 57 0.24
NS8R16SEB 1.4 M 16 (x2) 50 27 35 8 38 45 88 80 0.8
NS8R20SEB 2 M 20 (x2.5) 100 30 35 8 38 45 88 80 0.8
NS8R24SEB 3.4 M 24 (x3) 160 36 50 14 58 70 115 106 2.6
NS8R30SEB 5.5 M 30 (x3.5) 250 45 50 14 58 70 115 106 2.7
NS8R36SEB 9 M 36 (x4) 320 54 70 14 83 94 168 155 7
UNC thread also available: from UNC 3/8" to UNC 1"1/2
