Codipro

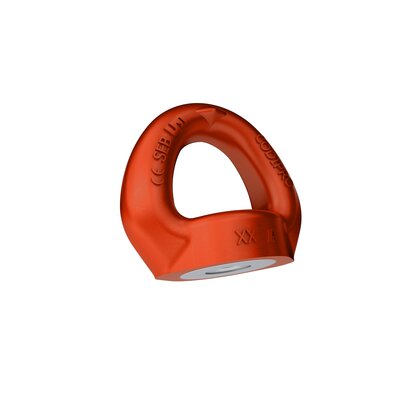

The SEB lifting eye nut is a single swivel ring. Equipped with 2 pins that always guide it perfectly in the direction of the sling. It is specially designed for lifting, including rotating loads.

Features:

  • Gradup steel ring that has a rotating range of 360°.
  • Swivelling under load
  • Safe alternative to C15 DIN 580 eye nuts
  • Torque key adaptor available on request.

Grade: GRADEUP (8+)

  • Material: High tensile steel
  • Marking: According to standard, CE-marked
  • Standard: EN 1677-1
    except grade/WLL
  • Safety factor: 5:1
Product Picture 1
Select a row from the table below, then click the add to quote button

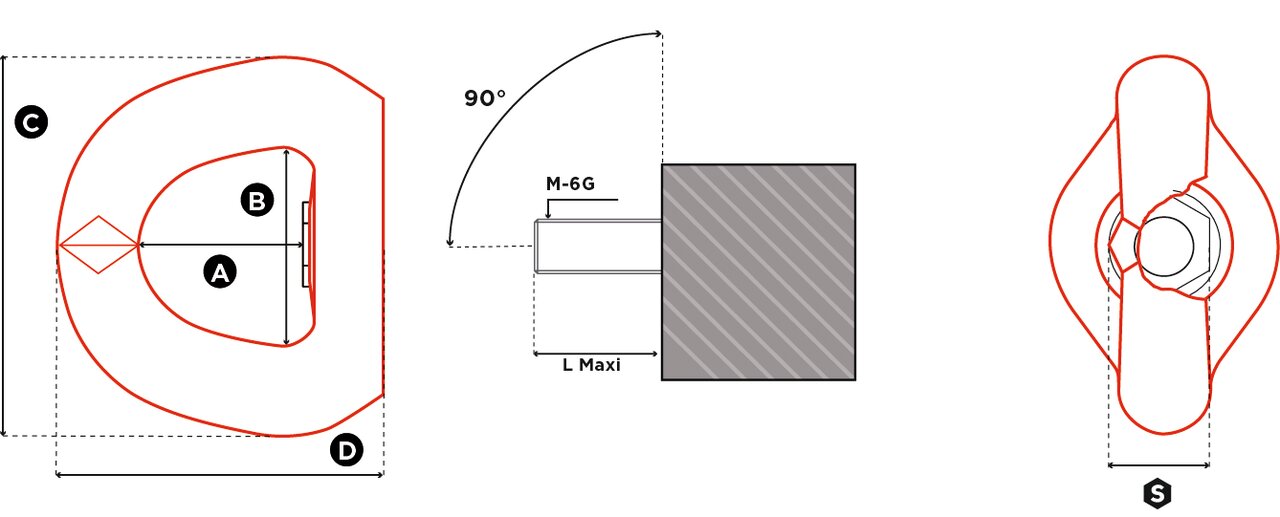

Part Code WLL
ton
Thread WLL
t
Torque
Nm
L max.
mm
A
mm
B
mm
C
mm
D
mm
Weight
kg
NS8M08FE.SEB 0.4 M 8 (x1,25) 0,40 6 22 38 45 88 80 0.8
NS8M10FE.SEB 0.5 M 10 (x1,50) 0,50 10 22 38 45 88 80 0.8
NS8M12FE.SEB 0.8 M 12 (x1,75) 0,80 15 22 38 45 88 80 0.8
NS8M16FE.SEB 1.4 M 16 (x2) 1,40 50 22 38 45 88 80 0.8
NS8M20FE.SEB 2 M 20 (x2,5) 2,00 100 35 55 70 115 106 2.5
NS8M24FE.SEB 3.4 M 24 (x3) 3,40 160 48 77 94 168 155 6.3
NS8M30FE.SEB 5.5 M 30 (x3,5) 5,50 250 48 77 94 168 155 6.3
NS8M36FE.SEB 9 M 36 (x4) 9,00 320 48 77 94 168 155 6.3
UNC thread also available: from UNC 3/8" to UNC 1"1/4
