Stainless steel female double swivel shackle SS FE DSS

Design: Centered lifting ring with double articulation except for the SEB, swivel eyebolt 360°.

  • Material: AISI 316 L
  • Marking: According to standard, CE-marked, The compliance to EC directives, GRADUP steel quality, The recommended tightening torque, The manufacturer brand, Tracebility marks of each component (Blacksmith + batch number), The thread
  • Finish: An anti-corrosion coating on the unpainted parts of the CODIPRO swivel lifting points and orange color (RAL 2002) for the schackle.
  • Standard: EN 1677-1
    except grade/WLL
  • Safety factor: 5:1

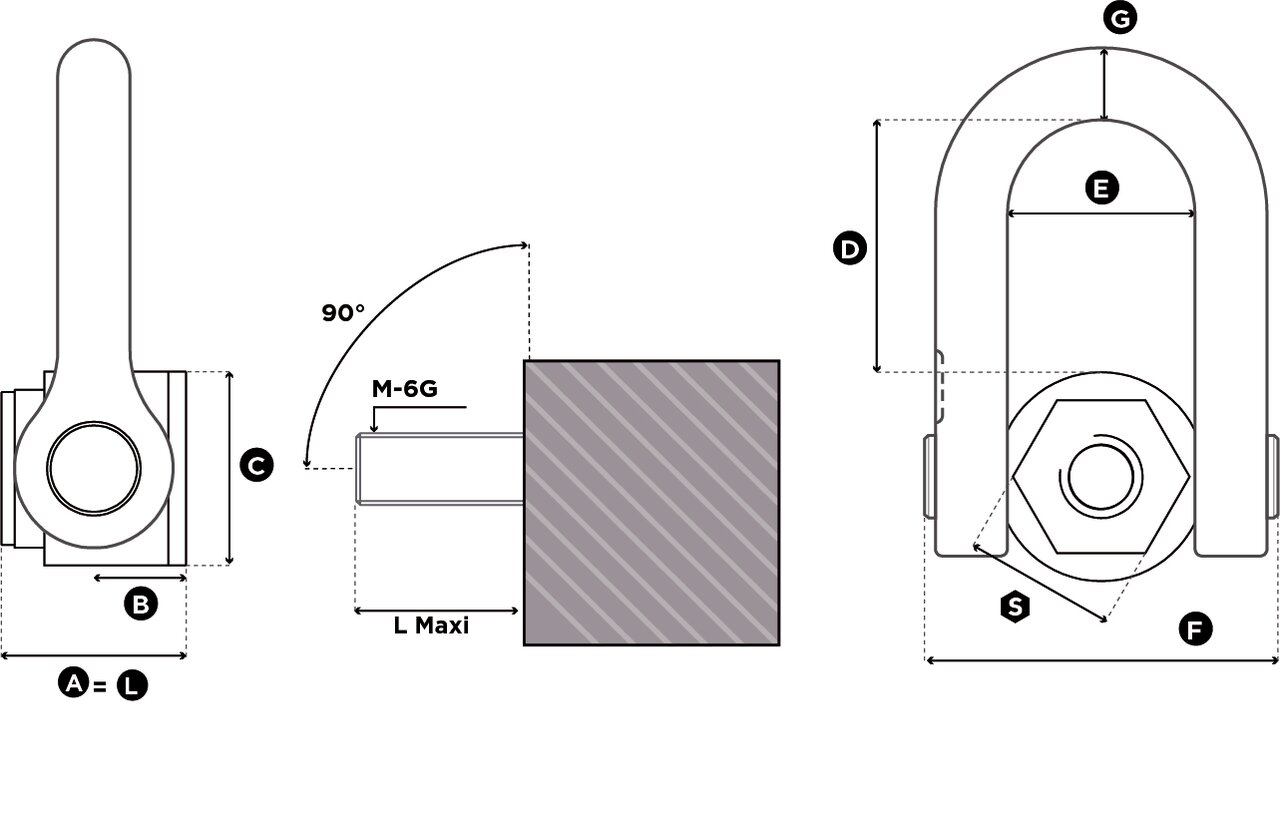

Product Picture 1
Select a row from the table below, then click the add to quote button
Part Code Thread WLL
t
Torque
Nm
L max.
mm
S
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
Weight
kg
SS.FE.DSSM24 M 24 (x3) 2,70 160 66 50 66 31 70 104 73 149 30 5.8
SS.FE.DSSM30 M 30 (x3.5) 3,50 250 66 50 66 31 70 104 73 149 30 5.8
SS.FE.DSSM33 M 33 (x3.5) 3,50 250 66 50 66 31 70 104 73 149 30 5.8
SS.FE.DSSM36 M 36 (x4) 5,00 320 66 50 66 31 70 104 73 149 30 5.8
Also available in UNC threads
