Double Swivel Ring Codipro DSR UP

Home / Products / LIFTING AND CARRYING HARDWARE / 9. LIFTING POINTS / Double Swivel Ring Codipro DSR UP

The double swivel ring DSR UP has been especially designed to guarantee liftings under load. Its double articulation allows it to line up perfectly with the sling.

Features:

Swiveling under load
Usable for any kind of lifting operation
Two ways of tightening:- Allen key or Torque wrench(also for external hex)
The tightening torque is stamped on all lifting rings in the GRADUP range.

Grade: GRADEUP (8+)

Material: High tensile steel
Marking: According to standard, CE-marked
Standard: EN 1677-1
except grade/WLL

Safety factor: 5:1

Select a row from the table below, then click the add to quote button

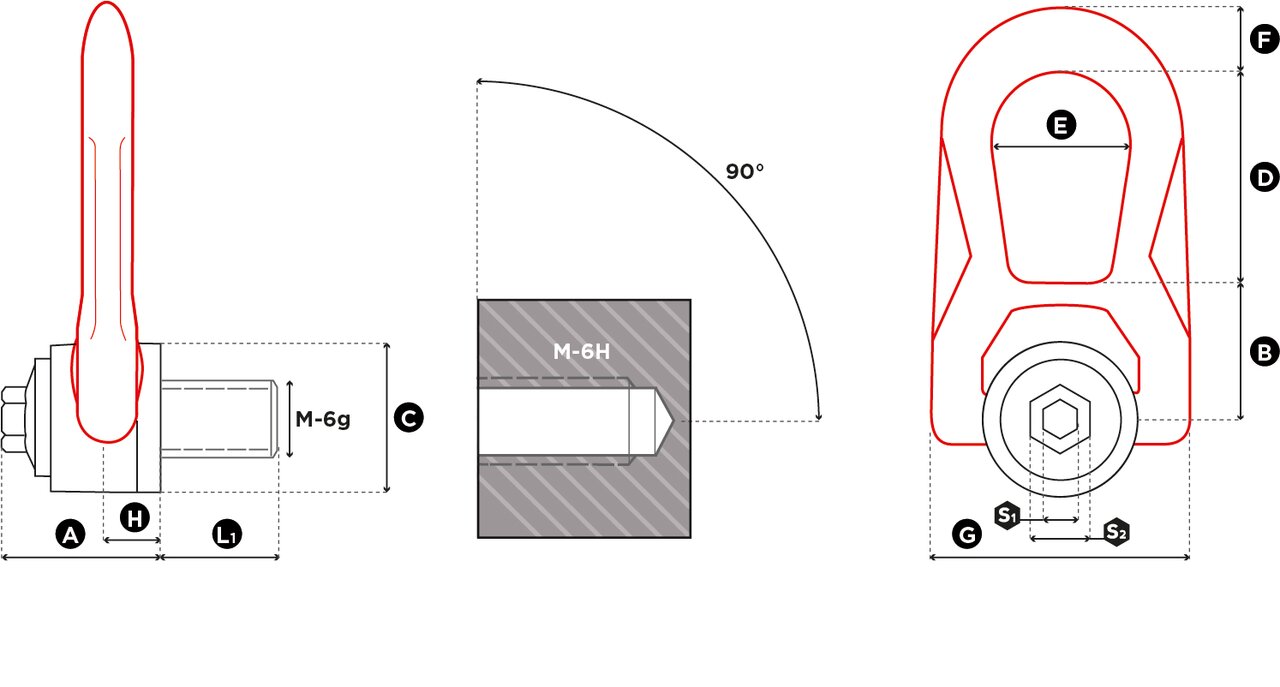

Part Code	WLL ton	Thread	StandardL1 mm	Torque Nm	S1 mm	S2 mm	A mm	B mm	C mm	D mm	E mm	F mm	G mm	H mm	Weight kg
NS8KL05M	0.07	M5 (x0.8)	15	3	8	16	33	30	30	38	27	14	53	9,5	0.3
NS8KL06M	0.15	M6 (x1)	15	4	8	16	33	30	30	38	27	14	53	9,5	0.3
NS8KL08M	0.4	M8 (x1.25)	15	6	8	16	33	30	30	38	27	14	53	9,5	0.3
NS8KL10M	0.7	M10 (x1.50)	18	10	8	16	33	30	30	38	27	14	53	9,5	0.3
NS8KL12M	1.05	M12 (x1.75)	21	15	8	16	33	30	30	38	27	14	53	9,5	0.3
NS8KL14M	1.4	M14 (x2)	23	30	8	20	45	40	45	53	38	17	76	13	0.9
NS8KL16M	2	M16 (x2)	27	50	8	20	45	40	45	53	38	17	76	13	0.9
NS8KL18M	2.3	M18 (x2.5)	27	70	8	20	45	40	45	53	38	17	76	13	0.9
NS8KL20M	2.5	M20 (x2.5)	30	100	8	20	45	40	45	53	38	17	76	13	0.9
NS8KL22M	3.5	M22 (x2.5)	33	120	14	24	62	55	60	83	55	25	115	19	2.6
NS8KL24M	4.4	M24 (x3)	36	160	14	24	62	55	60	83	55	25	115	19	2.6
NS8KL27M	5.7	M27 (x3)	40	200	14	24	62	55	60	83	55	25	115	19	2.7
NS8KL30M	6	M30 (x3.5)	45	250	14	24	62	55	60	83	55	25	115	19	2.7

UNC thread also available: from UNC 1/4" to UNC 1"1/4
