Haklift

For vertical lifting and turning of steel plates. Pulling on the ring to lock and unlock.



  • Features: Note! Lifting pieces weight must be minimum of 10% of maximum WLL!
  • Material: Steel
  • Marking: CE-marked
  • Finish: Painted, yellow
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
Select a row from the table below, then click the add to quote button

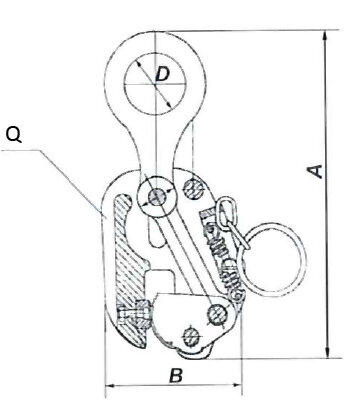

Part Code WLL
ton
Jaw opening
mm
A
mm
B
mm
Q
mm
D
mm
Weight
kg
LTABT20RE 2 0 - 25 320 150 60 50 4.7
LTABT30RE 3 0 – 30 340 180 70 40 10.7
