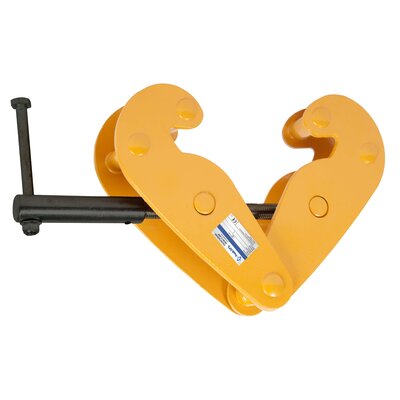

Haklift

The clamp can be used for example to attach a hoist to an I or T beam. Test certificate and Declaration of Conformity enclosed with each product.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Finish: Painted, yellow
  • Standard: EN 13155
Select a row from the table below, then click the add to quote button

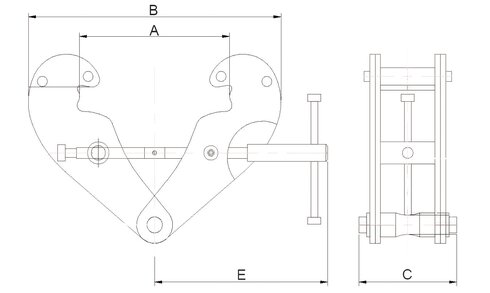

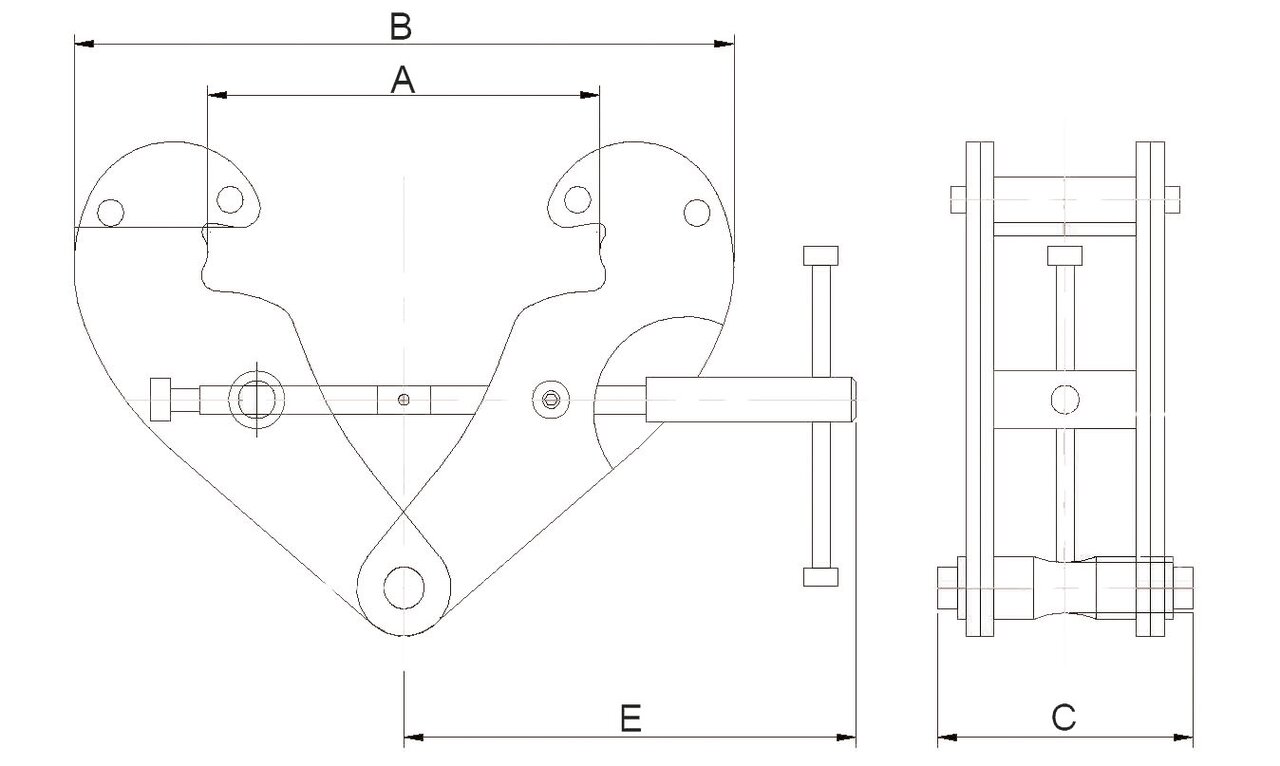

Part Code WLL
ton
Beam width
mm
A
mm
B
mm
C
mm
E
mm
TARPAL10 1 75-220 75-260 180-360 64 215
TARPAL20 2 75-220 75-260 180-3360 74 215
TARPAL30 3 80-320 80-354 235-490 103 260
TARPAL50 5 80-320 90-354 235-490 110 260
TARPAL100 10 90-320 80-365 320-505 120 260
