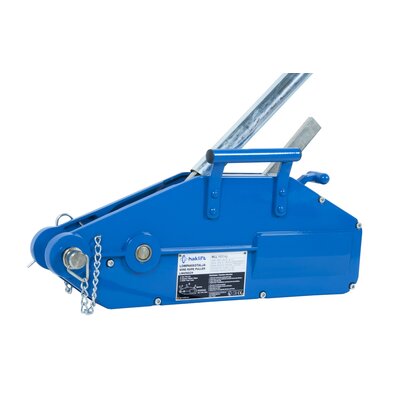

Haklift

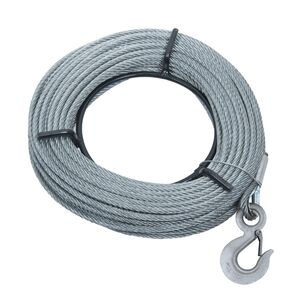

High quality aluminium wire rope hoist for pulling and lifting. The hoist does not have a wire drum as the wire goes through the hoist. Lifting and pulling speed is app. 3 m/min. The hoist is equipped with 20 m wire rope with a safety hook as a standard. Other wire rope lengths are also available upon request.

800, 1600 and 3200 kg models equipped with a carrying handle.



  • Material: Aluminum
  • Marking: According to standard, CE-marked
  • Standard: EN 13157
  • Safety factor: 5:1
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Lifting height
m
Rope Ø
mm
Lever length
mm
Pulling capacity
t
Weight
kg
LOABT800 0.8 20 8.3 800 1.2 6.5
LOABT1600 1.6 20 11 1,200 2.4 12.7
LOABT3200 3.2 20 16 1,200 4 22.1
LOABT5400 5.4 20 20 1,120 8 28.7
