Haklift

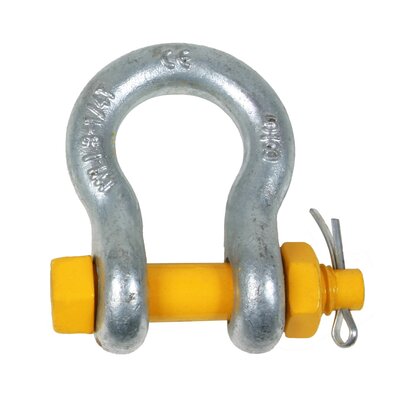

Shackles approved for lifting.



  • Features: RFID-ready
  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -20 - (+)200°C
  • Finish: Hot dip galvanized
  • Standard: US. FED. SPEC. RR-C-271F
  • Safety factor: 6:1
Select a row from the table below, then click the add to quote button

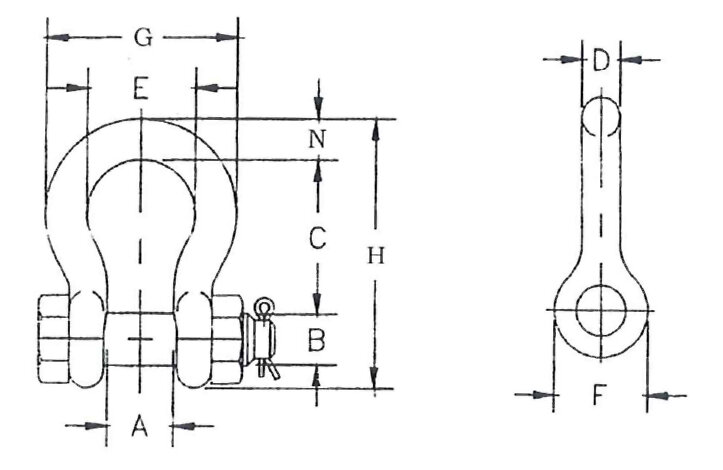

Part Code WLL
ton
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
N
mm
Weight
kg
SAK05PLBP 0.5 12 8 29 7 20 16 33 47 7 0.05
SAK07PLBP 0.75 14 10 31 8 22 19 38 53 8 0.1
SAK10PLBP 1 17 11 37 10 26 23 45 63 10 0.15
SAK15PLBP 1.5 19 13 43 11 30 27 52 74 11 0.22
SAK20PLBP 2 21 16 48 13 34 30 59 84 13 0.36
SAK32PLBP 3.25 27 19 61 16 43 38 75 106 18 0.76
SAK47PLBP 4.75 32 23 72 19 51 46 89 126 21 1.23
SAK65PLBP 6.5 37 26 84 23 58 53 102 148 25 1.79
SAK85PLBP 8.5 43 29 96 26 69 61 119 167 27 2.57
SAK95PLBP 9.5 46 32 108 29 74 69 131 190 32 3.75
SAK120PLBP 12 52 35 119 32 83 76 146 210 35 5.31
SAK135PLBP 13.5 57 38 133 35 92 84 162 233 38 7.18
SAK170PLBP 17 61 42 146 38 99 92 175 254 41 9.43
SAK250PLBP 25 73 51 178 45 127 106 225 313 57 15.4
SAK350PLBP 35 83 57 197 51 146 122 256 348 61 23.7
SAK550PLBP 55 105 70 267 67 184 145 327 453 80 44.61
SAK850PLBP 85 127 83 330 76 200 165 365 546 92 70
SAK1200PLBP 120 133 96 372 92 229 203 419 626 105 120
SAK1500PLBP 150 140 108 368 104 254 229 468 653 116 153
