Haklift

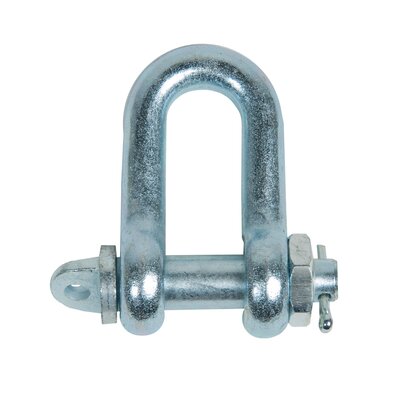

Electro galvanized shackles approved for lifting.



  • Material: Steel
  • Marking: CE-marked
  • Finish: Electro galvanized
  • Note: Also available hot dip galvanized models, ask for sales.
  • Safety factor: 5:1
Select a row from the table below, then click the add to quote button

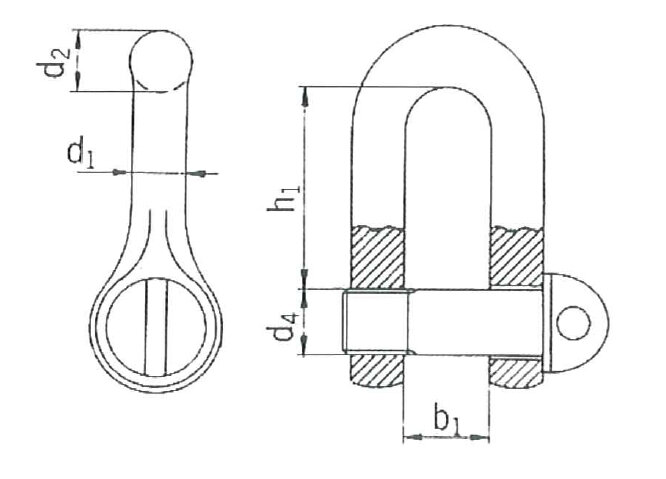

Part Code WLL
ton
Packing d4
mm
b1
mm
d1
mm
d2
mm
h1
mm
Weight
kg
SAKD0400L 0.4 25 10 14 8 19 30 0.097
SAKD0630L 0.63 25 12 17 10 21 36 0.18
SAKD1000L 1 25 16 21 13 23 49 0.3
SAKD1600L 1.6 25 20 27 17 26 61 0.57
SAKD2000L 2 1 22 30 19 29 67 0.98
SAKD2500L 2.5 1 24 33 21 33 73 1.3
SAKD3150L 3.15 1 27 38 24 37 84 1.85
SAKD4000L 4 1 30 42 27 41 91 2.53
SAKD5000L 5 1 36 47 30 45 111 4
SAKD6300L 6.3 1 39 53 34 55 120 5.3
SAKD8000L 8 1 45 60 38 60 140 7.9
SAKD10000L 10 1 48 66 42 65 147 10
SAKD16000L 16 1 60 81 52 75 185 19.2
SAKD20000L 20 1 68 90 58 80 211 28
SAKD25000L 25 1 72 100 63 221 34
SAKD32000L 32 1 80 110 70 246 49
SAKD40000L 40 1 90 125 80 276 75
