Green Pin

Dee shackle with screw collar pin.

Certification: This product can be supplied with a works certificate, 3.1 material certificate, manufacturer test certificate, EC Declaration of Conformity. All shackles starting from 2 t can be supplied with DNV 2.7-1 certificate.

Standard: EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVB Class 2, Grade A.

  • Material: Bow and pin high tensile steel, Grade 6, quenched and tempered.
  • Marking: According to standard
  • Temperature range: -40°C up to +200°C.
  • Finish: Hot dipped galvanized.
  • Standard: EN 13889
  • Safety factor: 6:1
  • Grade: 6

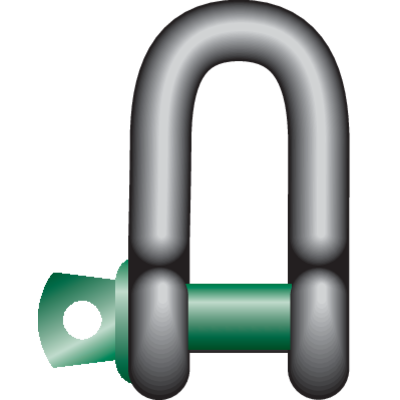

Product Image 1

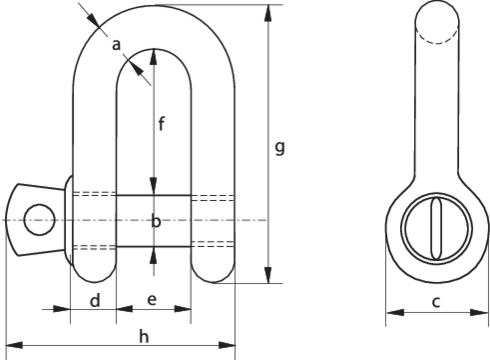

Product Image 2
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
A
mm
B
mm
C
mm
D
mm
e
mm
f
mm
g
mm
h
mm
Weight
kg
SAK03S 0,33 5 6 12 5 9,5 19 33 29,5 0,02
SAK05S 0,5 7 8 16,5 7 12 22 41,5 38 0,05
SAK07S 0,75 9 10 20 9 13,5 26 50 46,5 0,09
SAK10S 1 10 11 22,5 10 17 32 59 54 0,14
SAK15S 1,5 11 13 26,5 11 19 37 68 59,5 0,19
SAK20S 2 13,5 16 34 13 22 43 81 73 0,32
SAK32S 3,25 16 19 40 16 27 51 97 89 0,54
SAK47S 4,75 19 22 46 19 31 59 112 103 0,87
SAK65S 6,5 22 25 52 22 36 73 134 119 1,34
SAK85S 8,5 25 28 59 25 43 85 154 137 2,08
SAK95S 9,5 28 32 66 28 47 90 167 153 2,77
SAK120S 12 32 35 72 32 51 94 180 170 3,72
SAK135S 13,5 35 38 80 35 57 115 209 186 5,14
SAK170S 17 38 42 88 38 60 127 230 203 6,85
SAK250S 25 45 50 103 45 74 149 271 243 11,45
SAK350S 35 50 57 111 50 83 171 305 272 16,86
SAK425S 42,5 57 65 130 57 95 190 345 310 24,61
SAK550S 55 65 70 145 65 105 203 376 344 32,65
