Green Pin

General: Dee shackle with safety bolt.

Certification: This product can be supplied with a works certificate, 3.1 material certificate, manufacturer test certificate, EC Declaration of Conformity. All shackles starting from 2 t can be supplied with DNV 2.7-1 certificate.

Note: This shackle can also be delivered with fixed nut (an extra AISI 316 securing bolt is drilled through both the nut and shackle pin. This securing bolt is fastened with two sets of Nord-Lock® washers and a securing nut. These washers lock when subjected to movement and keep the nut safely in position).

  • Material: Bow and pin high tensile steel, Grade 6, quenched and tempered.
  • Marking: According to standard
  • Temperature range: -40°C up to +200°C.
  • Finish: Hot dipped galvanized.
  • Standard: EN 13889
  • Safety factor: 6:1
  • Grade: 6
Product Image 1
Product image 2
Select a row from the table below, then click the add to quote button

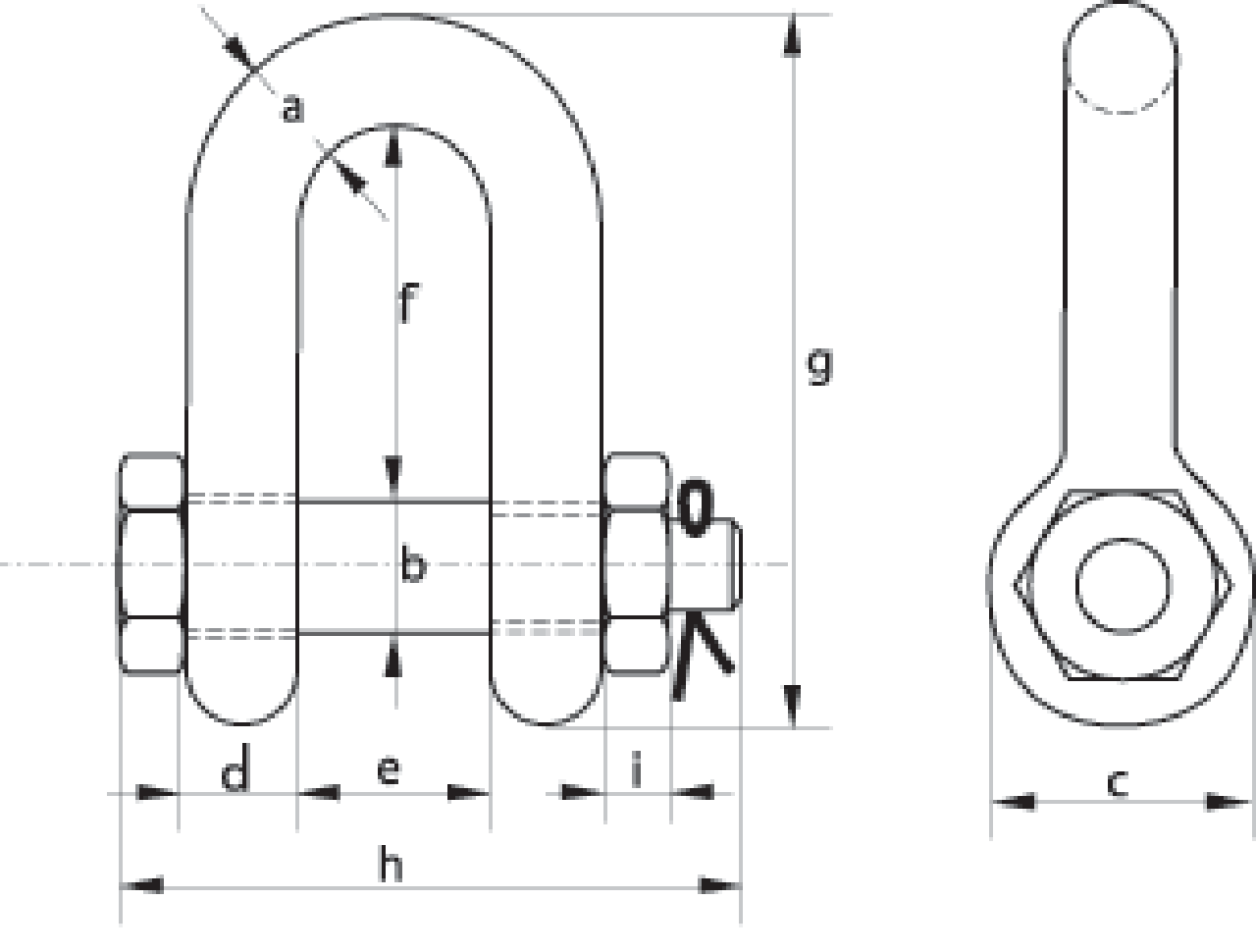

Part Code WLL
ton
A
mm
B
mm
C
mm
D
mm
e
mm
f
mm
g
mm
h
mm
i
mm
Weight
kg
SAK20SL 2 13,5 16 34 13 22 43 81 82 13 0,39
SAK32SL 3,25 16 19 40 16 27 51 97 98 17 0,67
SAK47SL 4,75 19 22 46 19 31 59 112 114 19 1,08
SAK65SL 6,5 22 25 52 22 36 73 134 130 22 1,66
SAK85SL 8,5 25 28 59 25 43 85 154 150 25 2,46
SAK95SL 9,5 28 32 66 28 47 90 167 166 27 3,4
SAK120SL 12 32 35 72 32 51 94 180 178 30 4,51
SAK135SL 13,5 35 38 80 35 57 115 209 197 33 6,1
SAK170SL 17 38 42 88 38 60 127 230 202 19 7,63
SAK250SL 25 45 50 103 45 74 149 271 249 23 12,88
SAK350SL 35 50 57 111 50 83 171 305 269 26 17,35
SAK425SL 42,5 57 65 130 57 95 190 345 301 29 25,94
SAK550SL 55 65 70 145 65 105 203 376 330 32 35,33
SAK850SL 85 75 83 162 73 127 229 427 380 39 52,97
