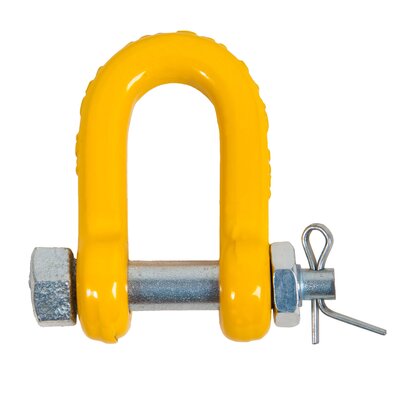

Haklift

Can be added directly to a lifting chain without a connection link.



  • Material: Steel
  • Marking: CE-marked
  • Finish: Painted, yellow
  • Safety factor: 4:1
Select a row from the table below, then click the add to quote button

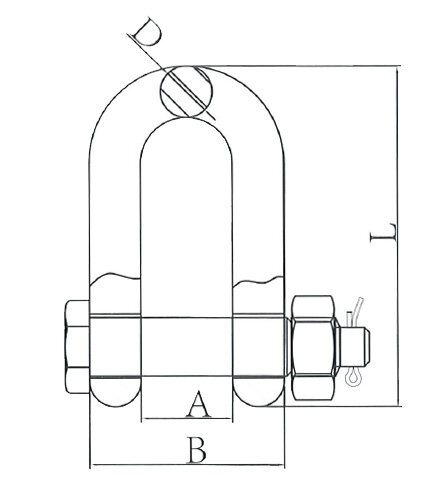

Part Code WLL
ton
For Chain Ø
mm
A
mm
B
mm
D
mm
L
mm
Weight
kg
SAKSA78 2 7/8 15 32 9 56 0.14
SAKSA10 3.15 10 21 43 11.5 71 0.27
SAKSA13 5.3 13 25 51 14.5 91 0.5
SAKSA16 8 16 30 63 17.5 111 0.89
