Home / Products / LIFTING AND CARRYING HARDWARE / 10. SHACKLES / SNATCH BLOCKS / Bow Shackles with Screw Collar Pin G-4161

Bow Shackles with Screw Collar Pin G-4161

Green Pin

Bow shackles with screw pin.

Certification: This product can be supplied with a works certificate, 3.1 material certificate, manufacturer test certificate, EC Declaration of Conformity. All shackles starting from 2 t can be supplied with DNV 2.7-1 certificate.

Standard: EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 2, Grade A.

  • Material: Bow and pin high tensile steel, Grade 6, quenched and tempered.
  • Marking: According to standard
  • Temperature range: -40°C up to +200°C.
  • Finish: Hot dipped galvanized.
  • Standard: EN 13889
  • Safety factor: 6:1
  • Grade: 6

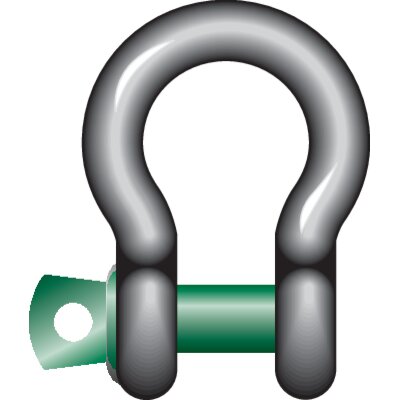

Product Image 1 Bow Shackles with Screw Collar Pin G-4161
Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button

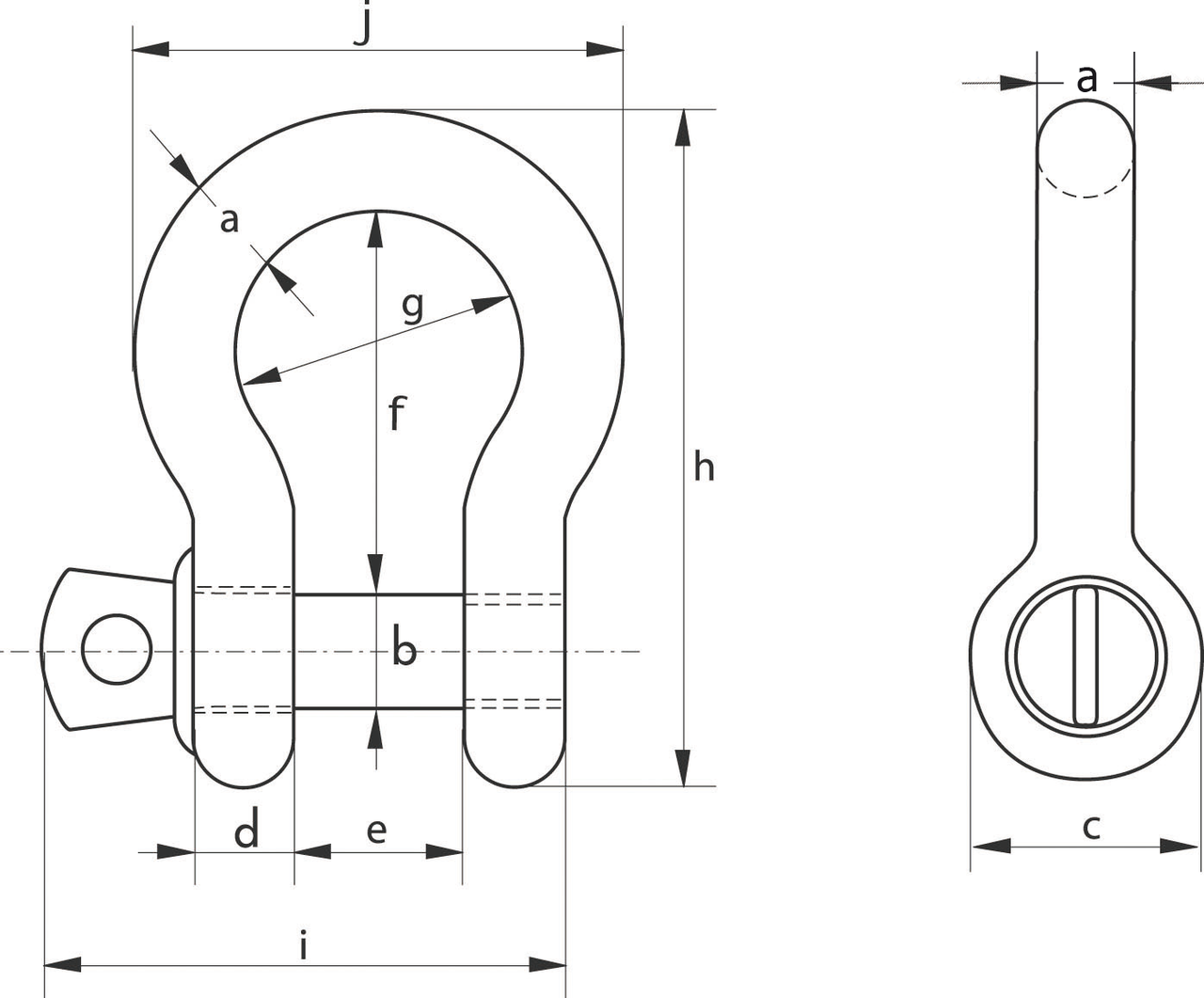

Part Code WLL
ton		 A
mm		 B
mm		 C
mm		 D
mm		 e
mm		 f
mm		 g
mm		 h
mm		 i
mm		 j
mm		 Weight
kg
SAK03P 0,33 5 6 12 5 9,5 22 16 36 29,5 26 0,02
SAK05P 0,5 7 8 16,5 7 12 29 20 48,5 38 34 0,05
SAK07P 0,75 9 10 20 9 13,5 32 22 56 46,5 40 0,1
SAK10P 1 10 11 22,5 10 17 36,5 26 63,5 54 46 0,14
SAK15P 1,5 11 13 26,5 11 19 43 29 74 59,5 51 0,19
SAK20P 2 13,5 16 34 13 22 51 32 89 73 58 0,36
SAK32P 3,25 16 19 40 16 27 64 43 110 89 75 0,63
SAK47P 4,75 19 22 46 19 31 76 51 129 103 89 1,01
SAK65P 6,5 22 25 52 22 36 83 58 144 119 102 1,5
SAK85P 8,5 25 28 59 25 43 95 68 164 137 118 2,21
SAK95P 9,5 28 32 66 28 47 108 75 185 153 131 3,16
SAK120P 12 32 35 72 32 51 115 83 201 170 147 4,31
SAK135P 13,5 35 38 80 35 57 133 92 227 186 162 5,55
SAK170P 17 38 42 88 38 60 146 99 249 203 175 7,43
SAK250P 25 45 50 103 45 74 178 126 300 243 216 12,84
SAK350P 35 50 57 111 50 83 197 138 331 272 238 18,15
SAK425P 42,5 57 65 130 57 95 222 160 377 310 274 26,29
SAK550P 55 65 70 145 65 105 260 180 433 344 310 37,6
