Haklift
  • Not for lifting

Hot dip galvanized short link chains packed in a bundle



  • Material: Steel
  • Marking: According to standard
  • Finish: Hot dip galvanized
  • Standard: DIN 766
  • Warning: Not for lifting
Select a row from the table below, then click the add to quote button
Part Code Length
m
Chain size
mm
Approxbreaking strength
kg

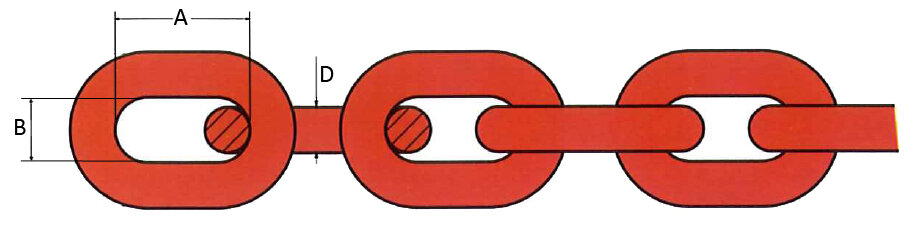

A
mm
B
mm
Weight
kg/m
KELH04KSN 50 4 600 16 6 0.32
KELH05KSN 50 5 1,000 18.5 7 0.5
KELH06KSN 50 6 1,400 18.5 8 0.75
KELH08KSN 50 8 2,500 24 10 1.35
KELH10KSN 50 10 4,000 28 14 2.25
KELH13KSN 30 13 6,400 36 18 3.8
KELH16KSN 30 16 10,000 45 22 5.2
