Haklift

Electro galvanized shackles approved for lifting.



  • Material: Steel
  • Marking: CE-marked
  • Finish: Electro galvanized
  • Note: Also available as hot dip galvanized (0,4 - 50 t)
  • Safety factor: 5:1
Select a row from the table below, then click the add to quote button

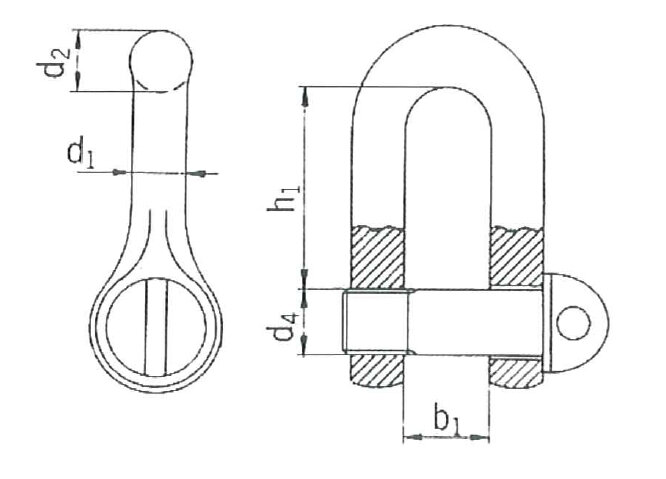

Part Code WLL
ton
Packing d4
mm
b1
mm
d1
mm
d2
mm
h1
mm
Weight
kg
SAKD0100 0.1 50 5 7 4 5 15 0.017
SAKD0160 0.16 50 6 8 5 6 18 0.024
SAKD0250 0.25 50 8 11 7 8 24 0.054
SAKD0400 0.4 25 10 14 8 10 30 0.097
SAKD0630 0.63 25 12 17 10 12 36 0.18
SAKD1000 1 25 16 21 13 15 49 0.3
SAKD10000 10 1 48 66 42 45 147 10
SAKD1600 1.6 25 20 27 17 19 61 0.57
SAKD16000 16 1 60 81 52 55 185 19.2
SAKD2000 2 1 22 30 19 21 67 0.98
SAKD20000 20 1 68 90 58 60 211 28
SAKD2500 2.5 1 24 33 21 23 73 1.3
SAKD3150 3.15 1 27 38 24 26 84 1.85
SAKD4000 4 1 30 42 27 29 91 2.53
SAKD5000 5 1 36 47 30 33 111 4
SAKD6300 6.3 1 39 53 34 37 120 5.3
SAKD8000 8 1 45 60 38 41 140 7.9
