SS FE DSR M Stainless steel female double swivel ring.
The stainless steel version of the double swivel ring, FE.DSR, can be used in humid, corrosive, chemical, maritime environment. Its double articulation allows it to line up perfectly with the sling

Features:

Rotatable under load.

Material: AISI 316 L
Marking: According to standard, CE-marked
Standard: EN 1677-1

Safety factor: 5:1

Select a row from the table below, then click the add to quote button

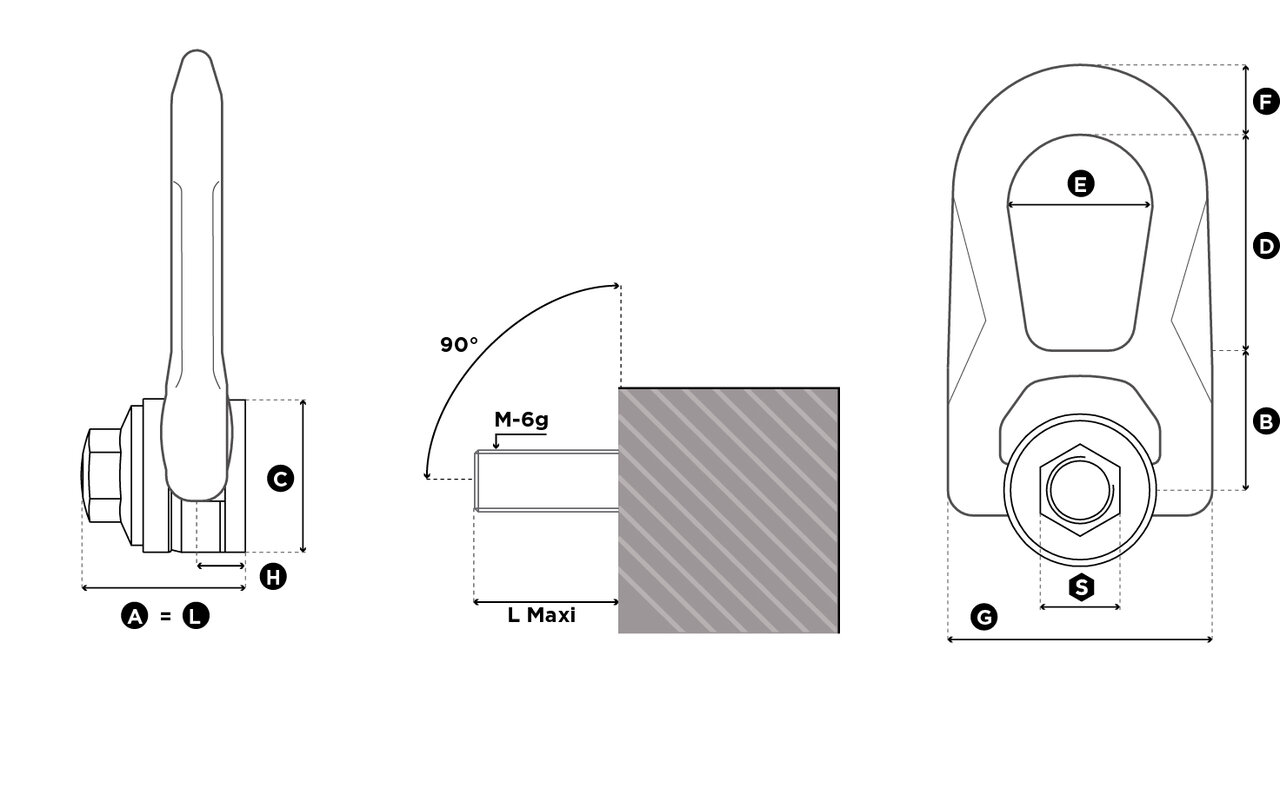

Код продукции	WLL ton	Thread	Torque Nm	L max. mm	S mm	A mm	B mm	C mm	D mm	E mm	F mm	G mm	H mm	Вес kg
FE.DSRM8	0,3	M 8 (x1,25)	6	43	20	43	40	45	53	38	17	76	13	0,9
FE.DSRM10	0,5	M 10 (x1,50)	10	43	20	43	40	45	53	38	17	76	13	0,9
FE.DSRM12	0,8	M 12 (x1,75)	15	43	20	43	40	45	53	38	17	76	13	0,9
FE.DSRM14	1	M 14 (x2)	30	43	20	43	40	45	53	38	17	76	13	0,9
FE.DSRM16	1,4	M 16 (x2)	50	43	20	43	40	45	53	38	17	76	13	0,9
FE.DSRM18	1,4	M 18 (x2,5)	70	62	24	62	55	58	83	56	25	115	19	2,6
FE.DSRM20	1,4	M 20 (x2,5)	100	62	24	62	55	58	83	56	25	115	19	2,6
FE.DSRM22	2,2	M 22 (x2,5)	120	62	24	62	55	58	83	56	25	115	19	2,6

Also available in UNC-thread
