Haklift

Extra large masterlink for chain sling assemblies. chain is attached with grade 100 connecting link.



  • Material: Steel
  • Marking: CE-marked
  • Temperature range: -29 - (+)205°C
  • Finish: Painted, blue
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Класс: 10
Select a row from the table below, then click the add to quote button

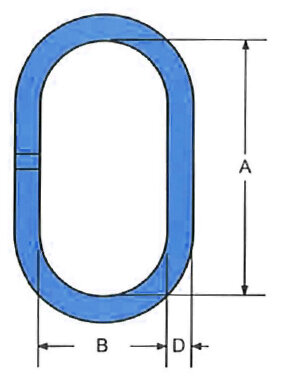

Код товара WLL
ton
For chain mm, 1-leg For chain mm, 2-leg D
mm
B
mm
A
mm
Вес
kg
NORAL10108 4 8/10 8 25 180 340 3,7
NORAL101310 6,7 13 10 28 180 340 4,7
NORAL101613 10 16 13 34 180 340 7,1
NORAL102016 16 20 16 42 180 340 8,9
